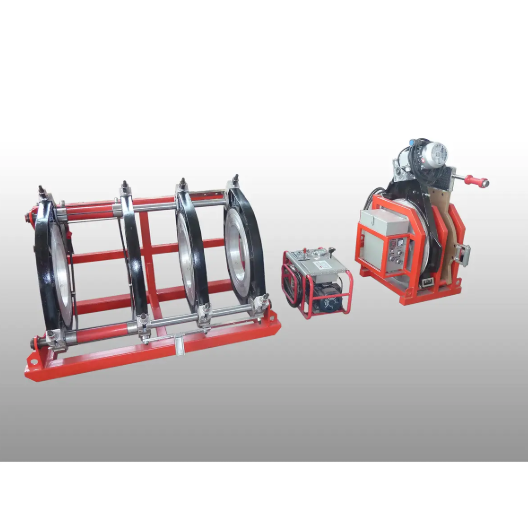

SDY-630-400 HDPE Hot Melt Butt Welding Machine

Short Description:


HDPE Hot Melt Butt Welding Machine Introduction

1)Welding time is about 10 to 20 seconds

2)Operation mode: PLC interface

3)Drive mode:Pneumatic and step control

4)Can design the fixture according to the products


Product Detail

Product Tags

Use and features

1. Low start-up pressure, make small pipe welding more reliable;Low start-up pressure, make small pipe welding more reliable;

2. Welding position can transform, convenient welding various pieces;Independent double channel, timer, can record heat and cooling two period, the timing is over alarm, be convenient for the user to;

3. Big dial, high precision, shockproof pressure gauge, reading more clearly.Big dial, high precision, shockproof pressure gauge, reading more clearly.


Specifications

1Equipment name and modelSDY-630-400 HDPE Hot Melt Butt Welding Machine
2Weldable pipe range (mm)Ф630,Ф560,Ф500,Ф450,Ф400
3Docking deviation≤1.3mm
4Temperature error±7℃
5Total power consumption10.1KW/380V
6Operating temperature220℃
7Ambient temperature-5  -  +40℃
8Time required to reach the welder temperature< 20min
9Weldable materialPE  PPR PB  PVDF
10Package size1、Frame141*105*112Net weight 230KGGross weight 271KG
2、Hydraulic station 70*53*50Net weight 46KGGross weight 53KG
3、Basket (including milling cutter, hot plate)104*85*133Net weight 210KGGross weight 247KG


Advantages

Suitable for ABS, PP, PE, PS, PC, etc, all kinds of thermoplastic material welding.

Suitable for Irregular and big size products welding, Water-tight and Air-tight.


Packaging

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air, our package no need fumigation.


Delivery

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port.
