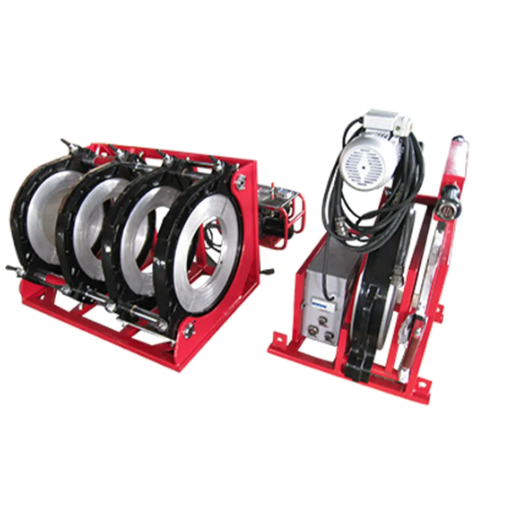

SDY-450-280 Hot Melt Machine Butt Welding Machine

Short Description:

Hot Melt Machine Butt Welding Machine Introduction

Wuxi Shengda Sulong Technology Co., Ltd. is a high and new tech company specializing in the production of plastic welding machine. We have been engaged in plastic welding equipment field for more than 10 years. We provide high-quality products and good service to you based on our advanced technology and rich experience.

Send email to us

Product Detail

Product Tags

Specifications

1	Equipment name and model	SDY-450-280 Hot Melt Machine Butt Welding Machine
2	Weldable pipe range (mm)	Ф450,Ф400,Ф355,Ф315，Ф280
3	Docking deviation	≤0.3mm
4	Temperature error	±5℃
5	Total power consumption	9.1KW/380V
6	Operating temperature	220℃
7	Ambient temperature	-5 - +40℃
8	Time required to reach the welder temperature	＜ 20min
9	Weldable material	PE PPR PB PVDF
10	Package size	1、Frame	1208695	Net weight 190KG	Gross weight 220KG
		2、Hydraulic station	705350	Net weight 46KG	Gross weight 53KG
		3、Basket (including milling cutter, hot plate)	7868113	Net weight 102KG	Gross weight 127KG

Product advantage

1. Reasonable engineering and mechanical design, making the welding work more convenient and flexible; locking mechanism to avoid external influence welding.

2. Fixed clamshell structure of the the card sets gland unilateral short and effective welding process by replacing the screw can also be changed back to the traditional gland.

3. Sealing pressure provided by the lever-drive mechanical transmission smooth, efficient and effective; ideal for under the trench operation.

4. The Activities group of card put on the unique design of the pressure holding bolts to facilitate the holding pressure cooling after welding work.

Main Markets

On the basis of domestic market,both brands gradually expand to oversea markets, mainly exported to North America, Europe, India, Southeast Asia market. We believe we can meet your requirements based on our competitive products and services. We welcome cooperation from all over the world, common development.

We are factory so we can offer you best prices and good quality.
