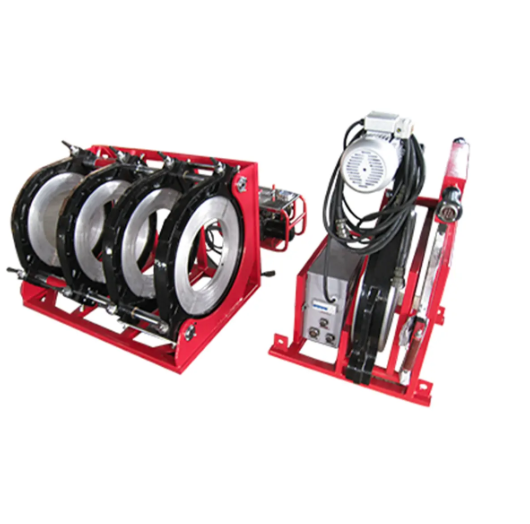

SDY-800-630 Hot melt butt welding Machine

Short Description:

Plastic Hot melt butt welding Machine Use and features:

1.Apply to the site in connection PE, PP, PVDF pipes and pipe fittings, tubes and, also can use in workshop;

2.The frame, hydraulic pressure station, mills, the heating plate, mills and the heating plate stents and optional accessories composition;

3.The heating plate with high precision temperature control system, surface coatings;Electric milling cutters;

4.The main part of the frame for aluminum alloy material, the structure is simple, compact and easy to use.

Send email to us

Product Detail

Product Tags

Specifications

1	Equipment name and model	SDY-800-630 Hot melt butt welding Machine
2	Weldable pipe range（mm)	Ф800，Ф,710,Ф630
3	Heating plate max temperature	270℃
	Pressure range	0-16MPa
4	Temperature error	±7℃
5	Total power consumption	16.7KW/380V 3P+N+PE 50HZ
6	Operating temperature	220℃
7	Ambient temperature	-5 - +40℃
9	Weldable material	PE PPR PB PVDF
Total weight：1690KG

Noted

1. The shipping:3 days after received payment

2. The packing:standard export plywood boxes

3. Our machine will be wrapped by plastic film,put into a wooden box at last.This type of packages is avoid getting rusty easily.
