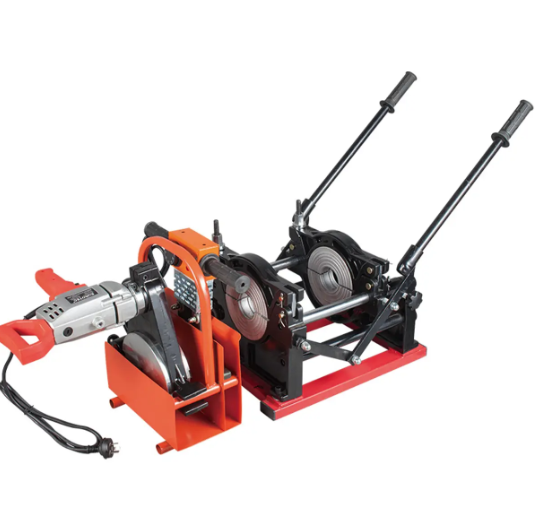

T2S160 Hand-push Pipe Welder

Short Description:

Hand-push Pipe Welder introduction

Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.

High quality design and construction provides an excellent machine for welding both on the worksite and in the factory.

The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

Send email to us

Product Detail

Product Tags

Uses and features

★It is suitable for connecting PE, PP, PVDF pipe and pipe, pipe and pipe fittings in construction site and trench, and can also be used in workshop;

★ It consists of rack, milling cutter, independent heating plate, milling cutter and heating plate bracket;

★The heating plate adopts independent temperature control system and PTFE surface coating;

★ electric milling cutter;

★The main part of the frame is made of aluminum alloy material, which is simple in structure, compact and easy to use.

Specifications

1	Equipment name and model	T2S-160/50 manual butt welder
2	Weldable pipe range（mm)	Ф160， Ф140， Ф125， Ф110， Ф90， Ф75， Ф63，Ф50
3	Docking deviation	≤0.3mm
4	Temperature error	±3℃
5	Total power consumption	1.7KW/220V
6	Operating temperature	220℃
7	Ambient temperature	-5 - +40℃
8	Time required to reach the welder temperature	＜ 20min
9	Heating plate max temperature	270℃
10	Package size	1, rack (including internal fixture), basket (including milling cutter, hot plate)	554752	Net weight 32KG	Gross weight 37KG

Quality control

1) Before the order can be confirmed finally, we would strictly check the material, color, dimension of the sample step by step.

2) We salesman ,also as a order follower,would trace every phase of production from the beginning

3) We have a QC team ,every product would be checked by them before packed

4) We would try our best to help clients solve problems when they occurred.

Our advantages

1. 10 years welding machine manufacture experience

2. “8S” management is the base of best service.

3. More than 80 engineers keep strong R&D power, can meet any technic request from the customer.

4. We are committed to providing solutions to the needs of our customers, and providing the latest in technology, and willing to solve the customers' problems.

We welcome customers from all over the world for inquiring and purchasing.
