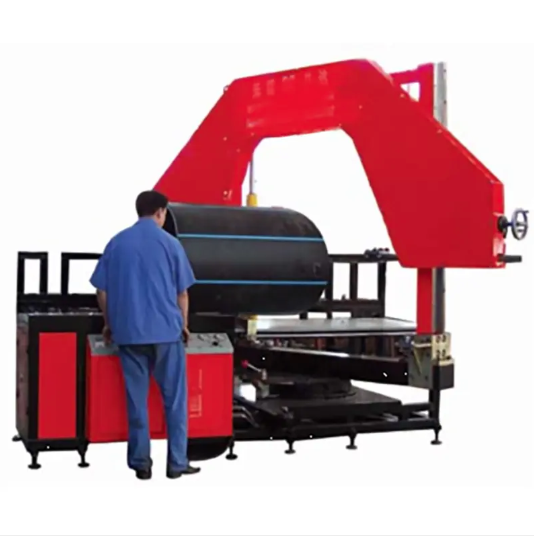

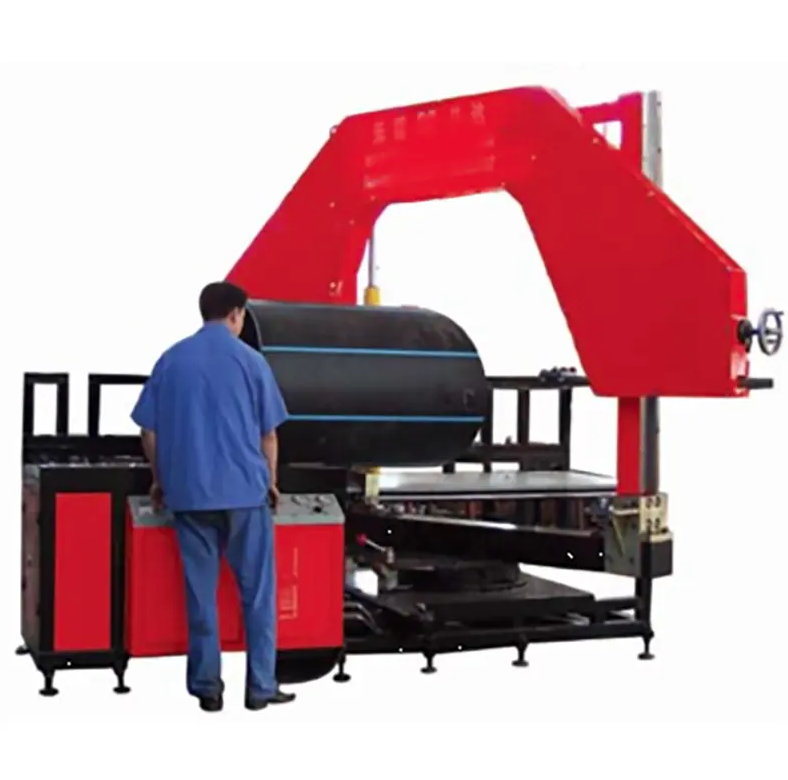

SDC1000 Multi-angle band saw for cutting pipes

Short Description:


Multi-angle band saw is suitable for cutting pipes according to specified angle and dimension while making elbow,tee or cross,which can reduce the material waste as far as possible and improve the welding efficiency.


Product Detail

Product Tags

Specifications


1

Equipment name and modelSDC1000 Multi-angle band saw for cutting pipes

2

Cutting tube diameter≤630mm

3

Cutting angle0~67.5°

4

Angle error≤1°

5

Cutting speed0~250 m / min

6

Cutting feed rateAdjustable

7

Working power~380VAC  3P+N+PE  50HZ

8

Sawing motor power4KW

9

Hydraulic station power2.2KW

10

Feed motor power4KW

11

Total power10.2KW

12

Total Weight4000KG


Application and Features

1.For PE,PP and other thermoplastic materials produced by the solid wall pipe, structural pipe wall pipe can also be used to cut the pipes made of other non-metallic materials,sectional material.

2.Integration of structural design,the saw body, the rotary table design is extremely stable.

3.Good stability, low noise, easy to operate.


Use instructions of Cutting Band Saw

1.According to the size of the workpiece, you need to adjust guide arm along the dovetail and lock the guide device after adjustment.

2.The maximum diameter of the cutting material shall not exceed the requirements and the work piece must be held firmly.

3.With the proper degree of tightness of saw blade, speed and feed amount must be appropriate.

4.When making Iron, copper, aluminum products, cutting fluid is banned.

5.If the blade is broken, after the replacement of new blade, you must turn the workpiece and resaw.


Why choose us?

1. We can manufacture and manufacture products according to the specific needs of our customers.

2. To provide you with the best and most professional service

3. Stable performance, best price, good quality and good after-sales service.

4. For more information, please feel free to contact us.
