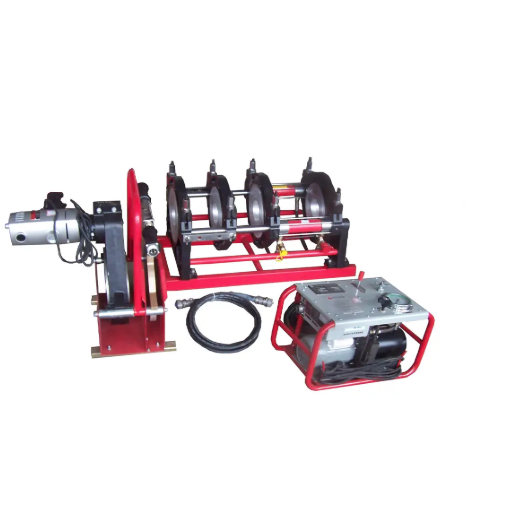

SDY-250-90 Butt fusion welding machine

Short Description:

Butt fusion welding machine introduction

Wuxi Shengda Plastic Technology Co., Ltd. professional manufacturer specialized in producing and selling pipe fitting welding machine,automatic butt fusion welding machine,pipe fitting welding machine,saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi angle cutting saw,electrofusion welding machine and other pipe auxiliary building machines.

Send email to us

Product Detail

Product Tags

Features

1. Low starting pressure ensures reliable welding quality of small pipes;

2. Separate two-channel timer shows time in soaking and cooling phases;

3. High-accurate and shockproof pressure meter in indicates clear readings.

Technical Parameters

1	Equipment name and model	SDY-250/90 Butt fusion welding machine
2	Weldable pipe range (mm)	Ф250，Ф225，Ф200，Ф180，Ф160， Ф140， Ф125， Ф110， Ф90
3	Docking deviation	≤0.3mm
4	Temperature error	±3℃
5	Total power consumption	3.15KW/220V
6	Operating temperature	220℃
7	Ambient temperature	-5 - +40℃
8	Time required to reach the welder temperature	＜ 20min
9	Weldable material	PE PPR PB PVDF
10	Package size	1、Frame	925947	Net weight 70KG	Gross weight 85KG
		2、Hydraulic station	705350	Net weight 36KG	Gross weight 43KG
		3、Basket (including milling cutter, hot plate)	685352	Net weight 46KG	Gross weight 53KG

Easy to use

1. Lower start-up pressure make the small diameter pipe welding more reliable.

2. Welding position can transform that it is convenient for welding all kinds of pipe fittings.

3. Stand alone dual channel timer can record both of heat and cooling hours ,when timing is over,the timer will give an alarm.

4. High precision shock proof pressure gauge with large dial is easy to read.

Our Services

1. One year warranty,life-long maintenance.

2. In warranty time,if non-artificial reason damaged can take old change new for free.Out of warranty time,we can offer maintenance service(charge for material cost).

3. Engineers available to service machinery overseas.
